In this plain-English guide, compression adapter fittings are explained as fittings that adapt tubing and smaller pipe runs for long-lasting plumbing work. The information is suited to property owners, professional installers, and customers looking for compatible components through Installation Parts Supply.
1/2 Compression To 3/8 Compression
A compression adapter creates its seal when the ferrule is compressed against the tubing and fitting body, establishing a tight connection. They are commonly used in home, commercial, and facility plumbing systems.
The article walks through the main types, sizes, materials, and recommended installation habits. It also looks at problem diagnosis and typical uses. It points out the importance of converting between 3/8 and 1/2 in. sizes and matching thread types such as NPT versus compression. For long service life, the guide mentions brass choices.
It is wise to follow manufacturer torque and turn specifications. Use tubing inserts for soft tubing like PEX when necessary. Do not swap ferrules, nuts, or fitting bodies from different brands, because mismatched parts can lead to leaks, galling, or poor seating.
Important Takeaways
- A compression adapter seals when its ferrule is compressed onto the tubing.
- Common sizes and materials for many plumbing tasks are supplied through Installation Parts Supply.
- Select materials—brass, copper, or stainless—based on pressure and environment.
- When adapting 3/8 and 1/2 in. fittings, precisely match both size and thread type.
- Adhere to manufacturer torque/turn specs and use inserts for soft tubing.
Understanding Compression Adapters And Compression Fittings
A compression adapter joins tubing by mechanically compressing a ferrule around the tube’s outside diameter. Unlike threaded connectors or push-fit fittings, these parts seal through ferrule compression rather than thread engagement or grab rings. Its seal is created by controlled metal deformation instead of mated threads or internal retention clips.
The sections below describe each component and how the pieces interact.
What A Compression Adapter Is And How It Differs From Other Fittings
A compression adapter is a type of compression fitting used to join pipes or tubes without soldering. As the compression nut is turned, it seats the ferrule into the tapered fitting body. That approach is unlike threaded joints, which rely on matched threads and thread sealant. It is also not the same as push-fit fittings, which typically use rubber-like seals and retention clips for fast installation.
Key Parts: Nut, Ferrule Olive, And Fitting Body
The main pieces are the nut, the olive, and the compression fitting body. The nut delivers axial force. The ferrule, sometimes called an olive, reshapes to bite into the tubing. Inside the fitting body, a tapered bore guides the ferrule into its sealing position.
Certain designs feature a rear ferrule that reduces seal stress and makes disassembly cleaner.
How Compression Fittings Make A Reliable Seal
Tightening the compression nut drives the ferrule into the fitting body’s taper. This radial compression presses the ferrule against the tubing and forms a line-contact seal. Proper seating of the ferrule helps prevent leaks at normal system pressures and temperatures.
Compression fittings are often used on copper, brass, stainless steel, and many rigid plastic tubes. Installers should follow manufacturer torque or turn guidance and confirm tubing compatibility before assembly.
| Part | Purpose | Main Benefit |
|---|---|---|
| Compression nut | Provides axial force that seats the ferrule | More controlled assembly and service |
| Sealing ferrule | Forms the tube-gripping seal | Strong metal-to-tube sealing under pressure |
| Adapter body | Tapered bore that seats ferrule | Proper ferrule seating and seal support |
| Optional rear ferrule | Decouples nut torque from ferrule seal | Improved reassembly with less tube damage |
Common Sizes And Type Conversions For Compression Adapters
Adapting between 1/2-inch and 3/8-inch tubing is often required. Choosing the correct reducer or adapter is necessary. The right part aligns with tubing OD, thread style, and fitting gender. Correct selection reduces the chance of leaks, extra adapters, and avoidable rework.
Half inch to three eighths adaptor options
In supply-line work, the 1 2 To 3 8 Reducer and Half Inch To Three Eighths Adaptor are frequently used. These fittings step down a 1/2-inch supply feed to a 3/8-inch inlet. These parts are sold as single-piece reducers and two-piece compression adapters. The design supports a continuous tube seal. Always check if the listed sizes refer to tubing OD or nominal pipe size before making a purchase.
Gender-specific adapters and reducers
The gender of the fittings is essential for proper mating. When the mating component has a male thread, a 1/2 Female To 3/8 Male Adapter may be the correct choice. For the reverse arrangement, installers often use a 3/8 Female To 1/2 Male Adapter. Mixed systems may also require variations such as 1/2 Male To 3/8 Female Adapter or 1/2 Male To 3/8 Male Adapter.
Compression-to-compression and compression-to-NPT connections
Parts like 1/2 Compression To 3/8 Compression adapters provide compression sealing on both ends. For threaded pipe networks, use a 1/2 Compression To 3/8 NPT or similar conversion fitting. For NPT connections, use the correct thread sealant or PTFE tape so the joint remains leak-resistant.
- Check part descriptions like 1 2 X 3 8 Compression Adapter or 3/8 X 1/2 Adapter for OD vs. nominal sizing.
- Before cutting tubing or ordering replacements, verify thread pitch, gender, and size.
- Use trusted suppliers such as Mueller, Parker, or Watts to lower the risk of incompatible parts.
Materials And Compatibility For Reliable Connections
Material choice has a significant effect on how long the joint lasts. It is important to match the fitting material with the tubing, pressure, and fluid type. That matching process encourages a connection that resists leaks, corrosion, and galling. For applications involving corrosive or high-purity systems, a 3 8 Male To 1 2 Female Stainless Steel option is often the most reliable.
Brass, copper, and stainless steel are the primary materials for most applications. Brass adapters generally perform reliably in potable-water and general plumbing systems. Copper fittings are ideal for copper tubing and soldered systems. Stainless steel, on the other hand, offers corrosion resistance and durability in high-pressure or chemical environments.
Compression fittings usually work well with rigid tubing such as copper, stainless steel, nylon, and PEEK. Soft tubing, such as PEX, can also be used with the support of tubing inserts. These inserts prevent the tube from collapsing and ensure the ferrule bites properly.
PTFE tubing offers chemical resistance and flexibility, but it can deform slowly under compression loads. To mitigate this, use fittings with redundant seals, internal O-rings, or back-up devices. When PTFE is used in compression joints, review the connection periodically for deformation or seepage.
Ferrule selection is important to a reliable compression seal. Metal ferrules in brass or stainless steel offer stability across a wide temperature range. Single-piece ferrules are appropriate for softer tubes. Two-piece ferrule systems provide more control and can reduce galling by separating the front-ferrule and rear-ferrule functions.
Cone-profile asymmetrical ferrules can create consistent seals in precision assemblies. They fix orientation. Symmetrical ferrules are simple to assemble, although they may move on some hard plastic tubing. Choose the ferrule geometry based on tubing stiffness and service demands.
Material selection should account for pressure, temperature, and the media flowing through the system. For high-pressure, high-purity, or aggressive fluid service, choose stainless components with compatible ferrules. For routine domestic plumbing, a brass compression adapter or copper compression fitting strikes a balance between cost and performance.
Best Practices And Mistakes To Avoid During Installation
A reliable installation begins on clean, square-cut tubing and correctly matched components. Following best practices helps reduce leaks, callbacks, and unnecessary rework. A simple pre-assembly checklist can reduce waste.
Pipe End Preparation: Cutting, Deburring, And Cleaning
Ensure tubing cuts are square with a quality cutter. Uneven cuts cause leaks. Deburring tools clear away sharp edges and metal slivers.
Clean the ends with a lint-free cloth to clear oil, dirt, and metal dust. For soft tubing like PEX, install a rigid insert sized to the tubing ID. The insert supports proper ferrule seating. Cutting, deburring, and cleaning are necessary steps for a dependable compression seal.
Proper Tightening: Distance Turns Versus Torque And Avoiding Over-Tightening
After reaching finger-tight, follow the manufacturer’s recommended number of turns. Turn-count tightening often aligns with ferrule geometry more reliably than torque alone. Thread pitch is directly tied to how much the ferrule compresses.
Do not over-tighten, because excessive force can flatten the ferrule, widen the contact area, and cause leaks. For stainless fittings, moderate torque is best to avoid galling. Only use isopropyl alcohol as a temporary assembly aid when the manufacturer approves it.
When To Reassemble Or Replace Compression Ferrules
Compression fittings can handle limited disassembly. After the first installation, ferrules often swage onto the tubing and may not reseal well if reused. Whenever a fitting is removed, inspect the ferrule for deformation, scoring, or uneven seating.
Ferrules with cracking should be replaced. If a fitting has been assembled and disassembled several times, replace the ferrule and consider the fitting body to ensure a leak-tight joint.
Common mistakes include mixing components from different manufacturers, neglecting to use inserts on soft tubing, mismatching compression and NPT threads, and ignoring cutting, deburring, and cleaning. Correcting these problems limits call-backs and supports long-term system performance.
Choosing The Correct Adapter With Better Search Terms
Finding the correct adapter depends on using precise search phrases and carefully reading part descriptions. Utilize specific phrases to find the exact match, preventing the need for returns. Useful search terms may include 3/8Th To 1/2 Adapter and 1 2 X 3 8 Compression Adapter when you need faster catalog results.
Key details to look for in descriptions are gender, diameter, and thread type. Listings such as 1/2 Female To 3/8 Male Adapter or 1 2 To 3 8 Compression Adapter indicate which side accepts tubing or pipe. Always verify whether the diameter refers to tubing OD or nominal pipe size.
Search variants are valuable because suppliers often use different naming systems. Try 3/8 X 1/2 Adapter, 3 8 To 1 2 Compression Adapter, or 3/8Th To 1/2 Adapter to find compatible parts across various catalogs. Suppliers like Installation Parts Supply and Grainger often list the same item under multiple labels.

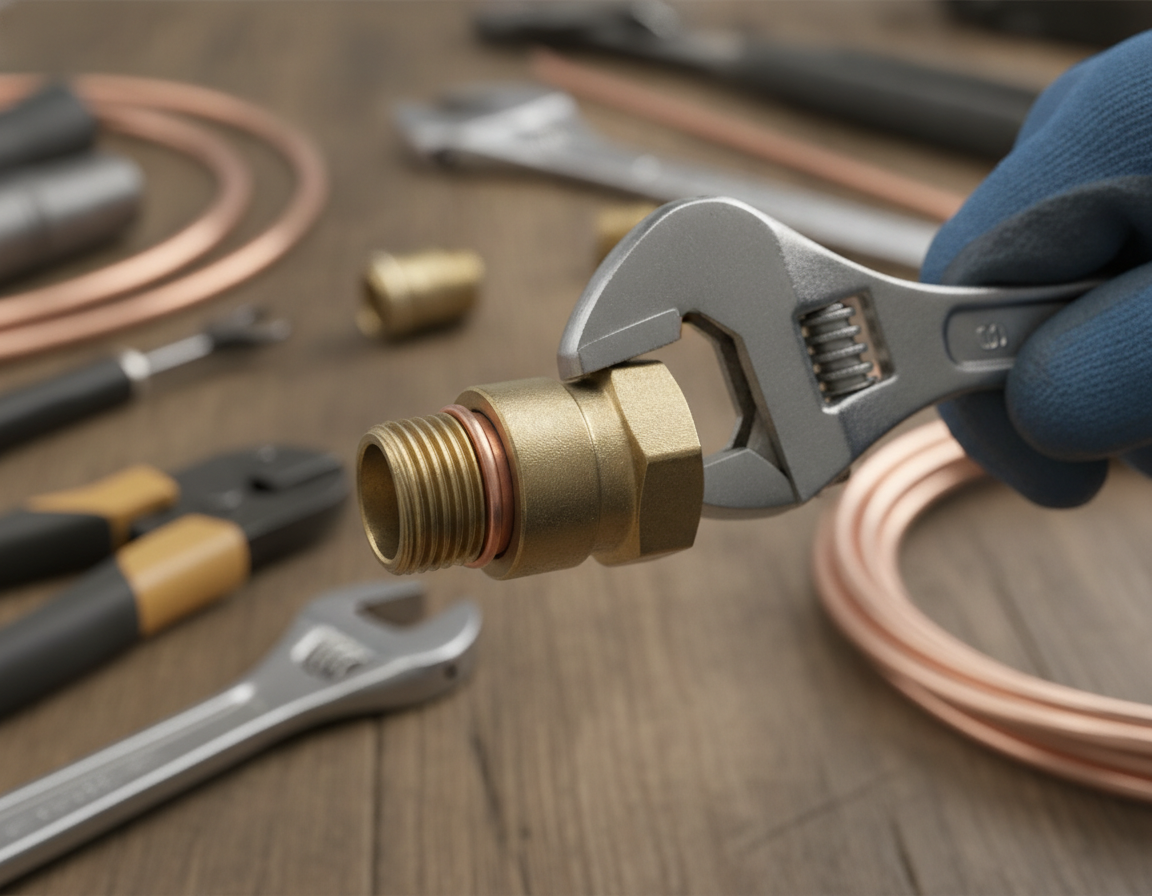

The adapter’s orientation must align with the components it connects to. A male-to-female piece, such as 1 2 Male To 3 8 Female Adapter, is ideal for connecting a rigid run to a hose or supply line. Female-to-female adapters are used when two male-threaded parts need to be joined.
Use extra care with hybrid fittings that mix different thread types. A 1/2 Compression To 3/8 NPT or a 1/2 Female Compression To 1/2 Male NPT combines compression and pipe thread on opposite ends. Always use thread sealant as directed by the manufacturer.
Choosing the right material is essential for corrosion resistance, compatibility, and service life. Brass and stainless steel are commonly selected choices. Ensure compatibility with copper, PEX, or PTFE tubing to avoid galvanic corrosion when mixing metals.
When uncertain, cross-check part numbers and review product photos closely. Incorporating keywords like 3/8Th To 1/2 Adapter, 1 2 X 3 8 Compression Adapter, 1/2 Female To 3/8 Male Adapter, 1 2 To 3 8 Compression Adapter, 3 8 To 1 2 Compression Adapter, and 3/8 X 1/2 Adapter in searches can expedite the process of finding the correct match.
Finding And Fixing Compression Fitting Leaks
Compression-connection leaks and pressure loss should be handled with a methodical process. Begin with a visual inspection, then conduct simple tests to pinpoint the issue. Always prioritize safety when working with live systems.
Diagnose Common Causes
Begin by inspecting the ferrule for gaps, uneven marks, or poor seating. Look for nuts that are cross-threaded. Confirm that the tubing is cut straight and fully inserted into the fitting. Verify the adapter type matches the system to avoid thread mismatches.
Diagnostic Checks To Follow
- Visually confirm ferrule seating and nut engagement.
- Rotate the nut slightly to feel for smooth engagement; roughness may indicate damaged threads.
- Measure tubing diameter and check for surface roughness or ovality that can prevent a seal.
- Pressure-test the connection at low pressure before returning to service.
Practical Fixes
If a joint appears loose, retighten to the recommended specification. Avoid over-tightening, which can deform the ferrule.
For swaged, scored, or distorted ferrules, replace them along with the nut and fitting body if necessary. Avoid mixing ferrules and fitting bodies from different manufacturers because mismatched taper, length, or geometry can weaken the seal.
For soft tubing, fit an internal tubing insert sized to the pipe to stabilize the wall and improve sealing. Where corrosion is a concern, stainless steel fittings can extend service life.
Addressing PTFE Creep And Cold-Flow
Preventing PTFE cold flow depends on specific sealing strategies. Choose fittings with internal O-rings, redundant seals, or mechanically supported ferrule designs that resist creep.
Plan periodic inspections because cold flow may increase over time, even after the fitting was installed correctly. If PTFE tubing shows deformation, replace it and consider using a secondary or backup sealing method.
| Issue | Fast Check | Recommended Action |
|---|---|---|
| Weeping at nut | Loose nut; visible gap at ferrule | Retighten to spec; if leak persists, replace ferrule |
| Pressure-related seepage | Inspect tube shape and ferrule alignment | Cut tube square, add insert, and replace ferrule |
| Long-term slow leak | Soft tubing or PTFE creep | Use PTFE cold flow prevention measures; switch to reinforced tubing or add O-ring seals |
| Cross-threaded or damaged threads | Rough engagement when tightening | Replace damaged nut or body and tighten new parts to specification |
| Corroded fitting components | Look for corrosion marks or surface damage | Switch to stainless steel fittings with compatible ferrules |
Application Considerations And Use Cases
Compression adapters are important for various tasks around the home. They commonly join supply tubing to faucet, toilet, and fixture inlets. For example, a sink supply line adapter may be needed when faucet inlets and sink supply posts use different sizes.
Residential work commonly includes sink supply lines, faucet connections, toilet hookups, and appliance connections. When replacing a tank or adding a valve, a water heater compression adapter can be convenient. It is essential to choose parts that can handle household water pressure and match the ferrule material to the tubing.
In commercial and industrial settings, the requirements are more stringent. High-pressure compression fittings are used in process lines, bottled gas systems, and HVAC. For demanding applications, stainless ferrules and two-piece ferrule designs can withstand creep, corrosion, and vibration.
For instrumentation and high-purity systems, fittings must minimize contamination and out-gassing. Choose materials that are compatible with autoclave cycles and clean-room environments. For lab or medical equipment, confirm rated pressure, documentation, and traceability before choosing components.
Mixing parts from different manufacturers can create problems. Small differences in ferrule taper, thread pitch, or ferrule length can compromise the seal. It is best to purchase fittings and ferrules from the same vendor or confirm compatibility through Installation Parts Supply or the manufacturer’s data.
When buying parts, verify product pages for exact OD, thread pitch, material, and pressure rating. That step cuts down on rework in the field. Proper selection is key to preventing leaks and extending the service life of both residential and commercial installations.
Final Thoughts
Compression adapters are useful for joining and converting tubing, provided you select the right one and install it properly. Knowing the main parts—nut, ferrule, and body—makes selection and installation more reliable. That understanding helps you match size, gender, and thread type, including parts such as a 3/8 to 1/2 converter or 1/2 female to 3/8 male adapter.
The material of the adapter is also essential. Brass and stainless steel are often chosen for high-pressure, corrosive, or harsh chemical environments. Copper is often suitable for many household and residential plumbing applications.
Follow recommended installation methods. Make square cuts and clean up the tubing ends. Use inserts for soft PEX or nylon tubing. Tighten by the recommended turns, avoiding excessive force.
For troubleshooting, check ferrule seating and thread integrity. Replace swaged ferrules after disassembly. For PTFE applications, consider redundant seals, backup sealing methods, or alternative materials to prevent cold-flow.
When buying fittings, use trusted suppliers and detailed product specifications. Installation Parts Supply recommendations can support compatibility. They provide a wide selection of adapters, reducers, and conversion fittings. Choosing the right parts and following proper installation techniques will reduce leaks and extend system lifespan.
